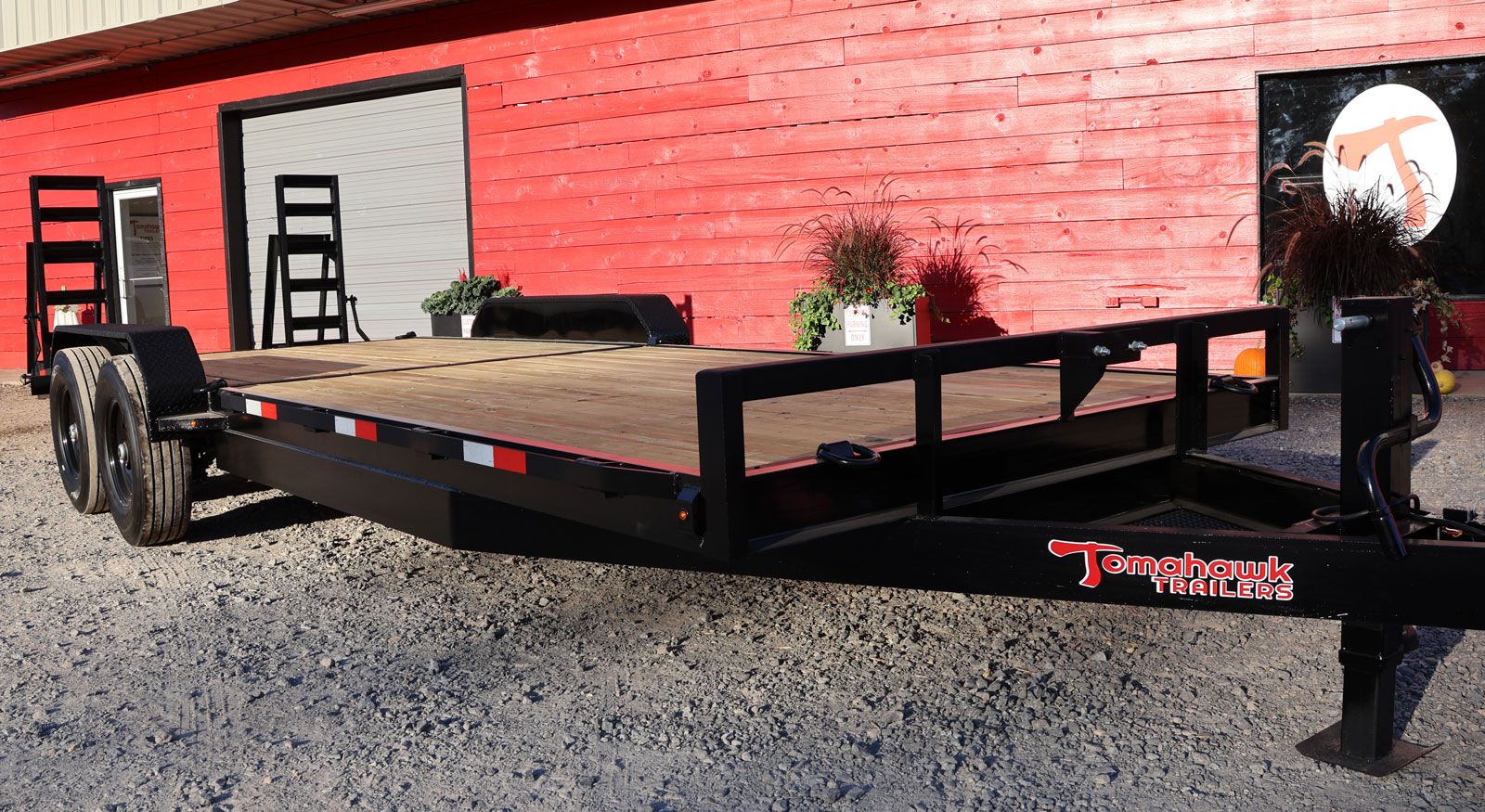

Our Equipment Haulers are built tough to handle the heaviest machinery and tools with ease. Designed for strength and stability, these trailers provide reliable performance on the job site or the road. With customizable features and upgrades, you can tailor your equipment hauler to meet your specific needs, ensuring durability and safety for any task.
Specifications
| GVWR | 12,000 - 16,000 lbs |
| Weight | 1,920 - 3,180 lbs |
| Payload | 10,820 - 12,820 lbs |
| Lengths | 18 feet - 26 feet |
| Widths | 82" |
| Frame | 5", 6" Channel |
| Floor | No. 1 Grade 2" Pressure Treated Pine with Slide In Decking |
Standard Features
| Axles | 6K, 7K, 8K |
| Tires | 205/75/15 - 8 ply, 225/75/15 - 10 ply |
| Coupler | 2 5/16 Ram Bulldog |
| Deck | 2 - 4 foot Dovetail or Flat |
| Tie Downs | 6-16.5K D-Rings, Stake Pockets with Rub Rail |
| Fenders | 72" Diamond Double Broke |

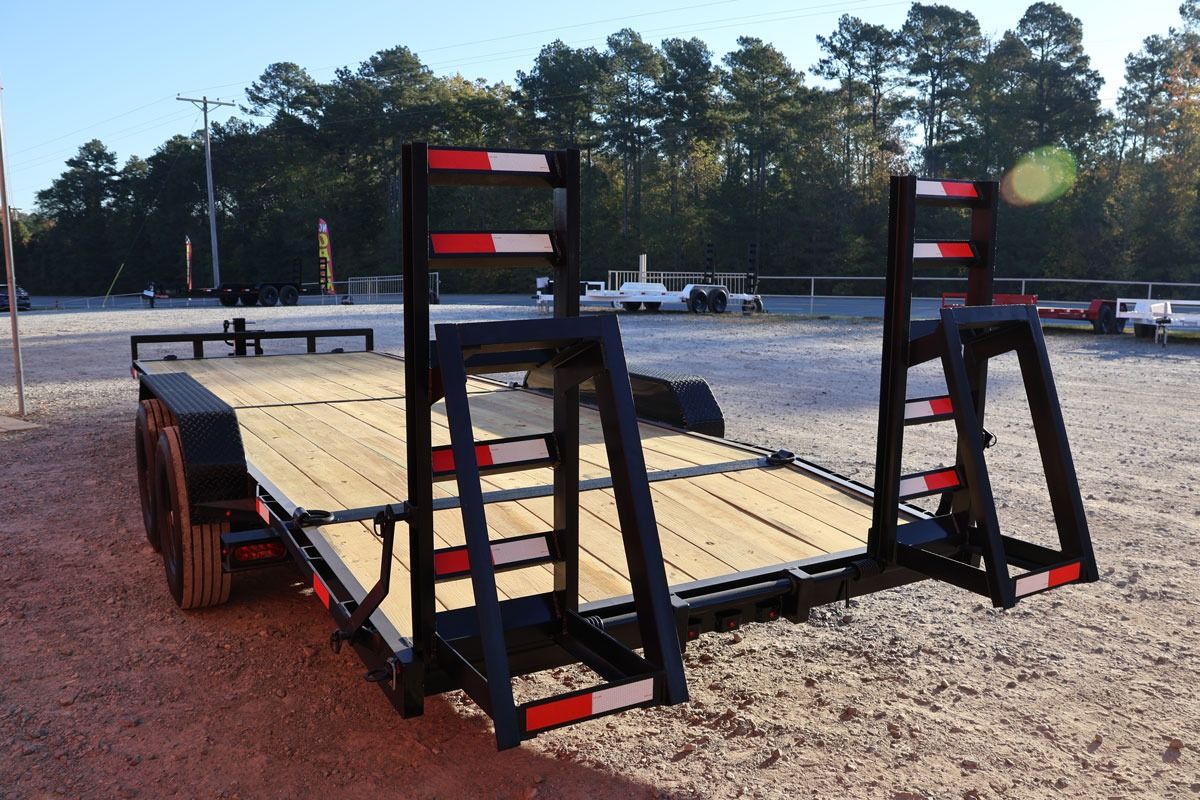

| Ramps | 4-5ft ramps, 4-5ft HD ramps |
| Jack | 8K 2-Stage Top Wind Ram Jack, 12.5K Spring Loaded HD Ram Jack |
| Tongue | Complete Wrap Tongue |
Popular Upgrades
Adjustable Coupler Hitch (Standard on 16K)
Trailerfinder Tire Size Upgrade
Standard Color Upgrades (Gray, Green, Red, Blue, White)
Premium Color Upgrade ( Kabota Orange)
