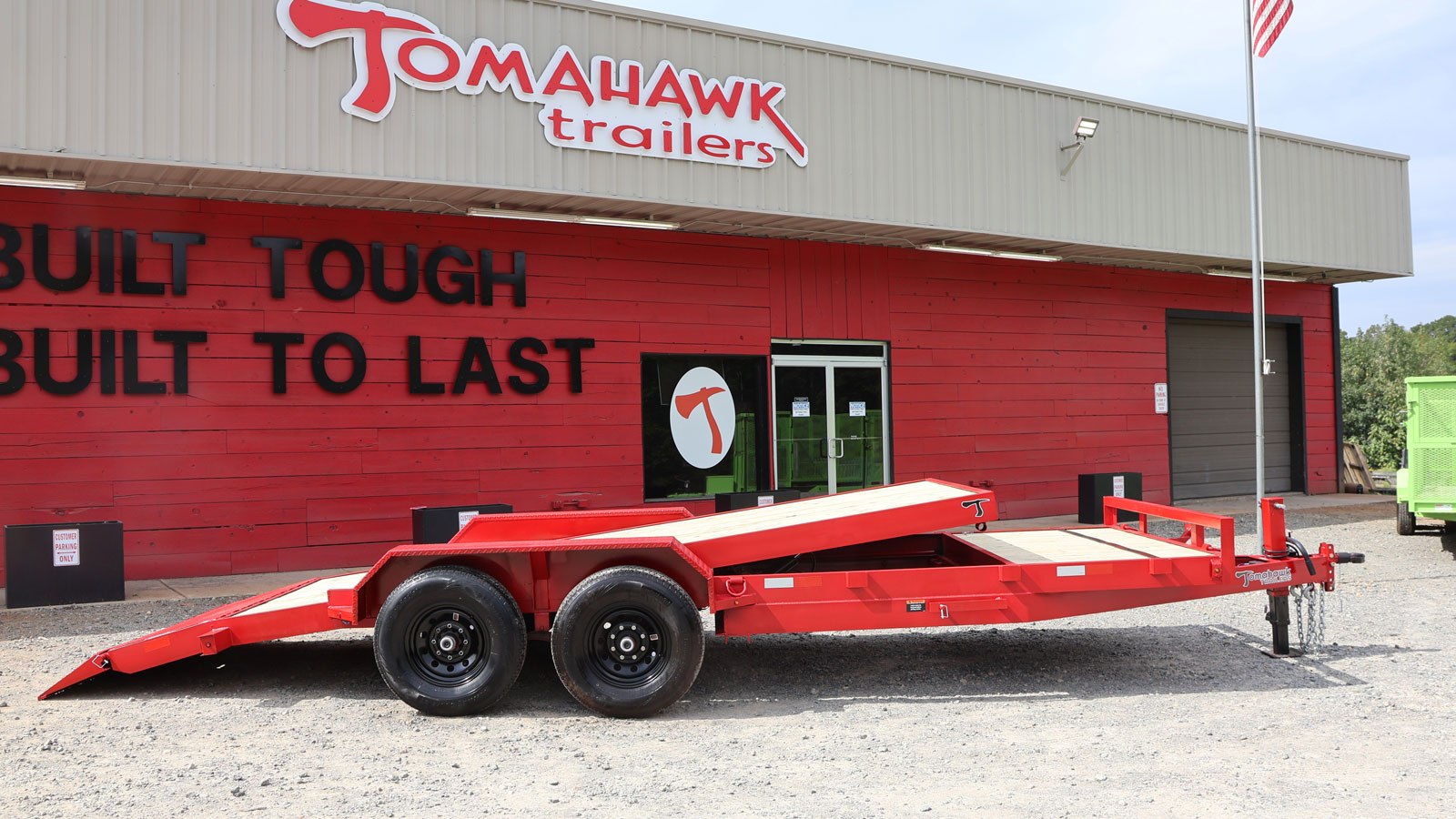

Our Tilt Trailers are built for effortless loading, secure transport, and all-around durability. Whether you're hauling equipment, side-by-sides, tractors, or vehicles, the tilt deck makes loading smooth and hassle-free—no ramps required. Designed for strength, balance, and ease of operation, these trailers deliver a controlled tilt, a stable ride, and superior handling. With a wide range of customizable options and upgrades, you can tailor your tilt trailer to match your exact needs, giving you confidence, safety, and convenience on every haul.
Specifications
| GVWR | 12,000 (car hauler style) - 14,000 lbs and 16,000 lbs (equipment hauler style) |
| Weight | 2,150 - 3,450 lbs |
| Payload | 8,550 - 13,850 lbs |
| Lengths | 16 feet - 20 feet |
| Widths | 82" |
| Frame | 4", 5", 6" Channel |
| Floor | No. 1 Grade 2" Pressure Treated Pine with Slide In Decking |
| Hydraulic System | Hydraulic Cushion Cylinder for controlled tilt |
| Hinge | Full-width heavy-duty piano hinge |
Standard Features
| Axles | 12K, 14K, 16K |

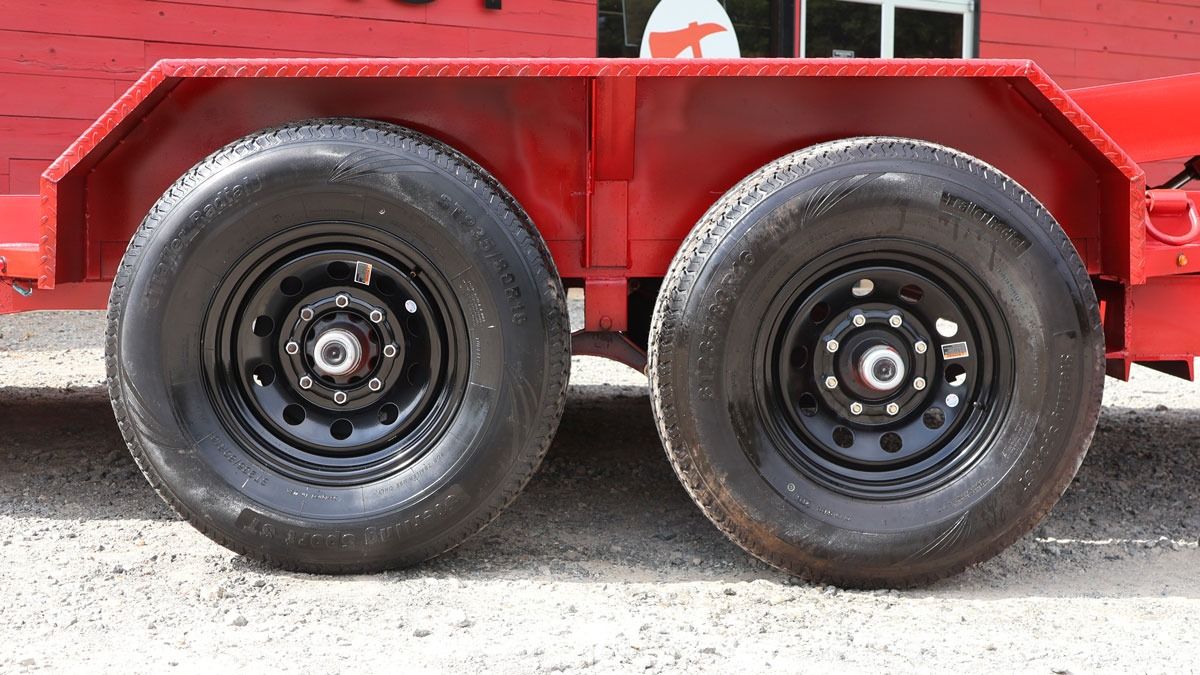

| Tires | 225/75/15 10 ply, 235/80/16 10 ply |
| Coupler | 2" Ram Bulldog , 2 5/16" Ram Bulldog |

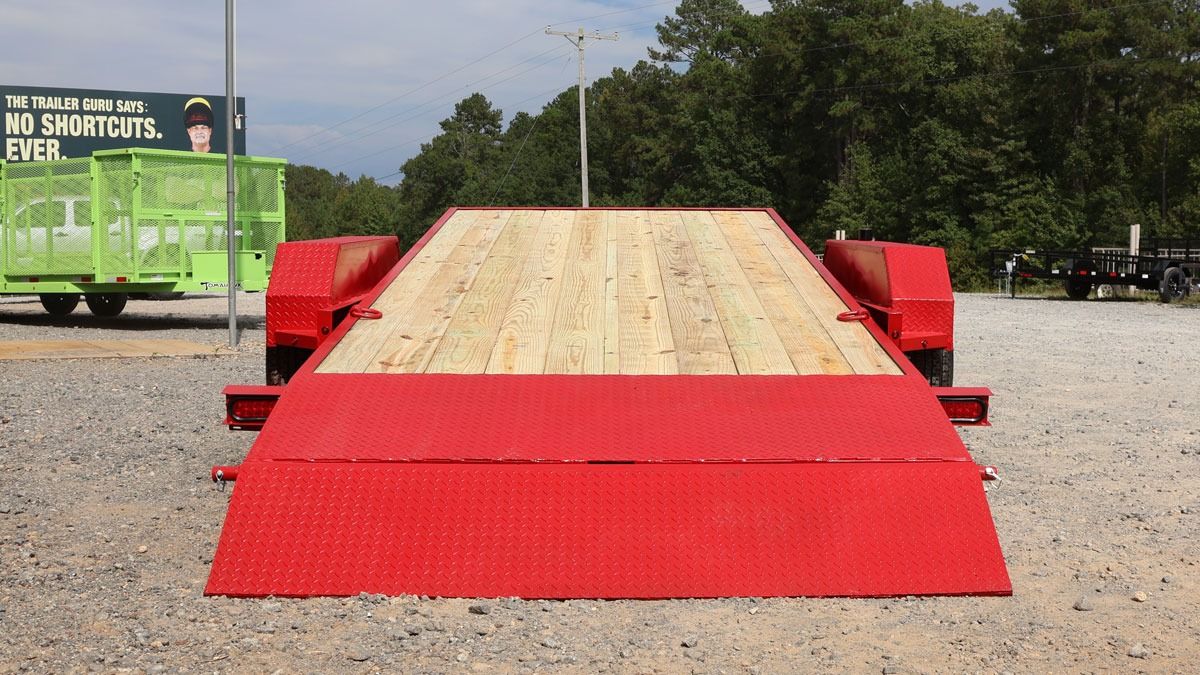

| Deck | 2-foot Dovetail or Flat |
| Tie Downs | 4-12K D-Rings, 3 x4 Inch Channel Stake Pockets |
| Fenders | 72" Diamond Double Broke |
| Jacks | 8K 2-Stage Top Wind Ram Jack, 12.5K Spring Loaded HD Ram Jack |
| Tongue | Complete Wrap Tongue |
Popular Upgrades
Adjustable Coupler Hitch
Trailfinder 14-Ply Wheel & Tire
Standard Color Upgrades (Gray, Green, Red, Blue)
Premium Color Upgrade (Kubota Orange, White)
Rub Rail
